Fire hoses have a maximum length as well as a minimum, nozzles must do two jobs, and every ship above 500 tons carries a brass flange that may never be used in its working life but has to be produced the moment an inspector asks for it.
The Requirement Behind the Layout
The fire main is the oldest firefighting system aboard and the one most people assume needs least explanation. Water, pumps, pipes, hydrants, hoses. In fact SOLAS Chapter II-2, Regulation 10 specifies it in unusual detail, and the specifications are all downstream of a single design objective: that any part of the ship can be reached by water, and that two jets can be brought to bear at the required pressure.
Everything else follows from that. Hydrants are positioned so the coverage holds. Hoses are long enough to reach but short enough to handle. Nozzle sizes are set so the smallest pump can still deliver two effective jets. Once the objective is clear, the individual numbers stop looking arbitrary.
Every dimension in the fire main specification traces back to one requirement: two jets of water, at pressure, reaching any part of the ship.

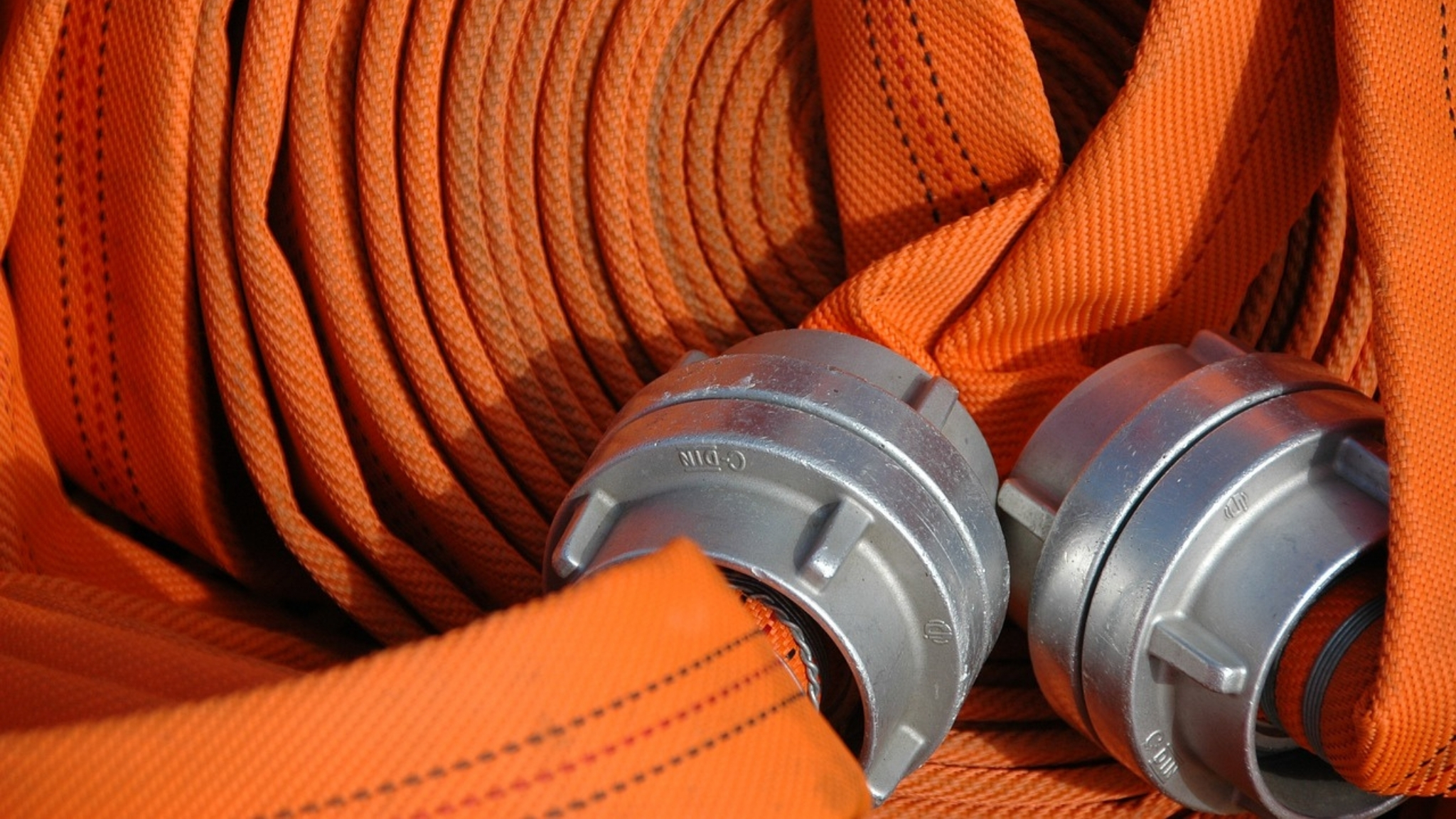

Hose Length Has a Ceiling, Not Just a Floor
The detail that surprises people is that fire hoses have maximum lengths as well as a minimum. A hose must be at least 10 metres, but not more than 15 metres in machinery spaces, 20 metres in other spaces and on open decks, and 25 metres for open decks on ships with a maximum breadth exceeding 30 metres.
The cap exists because a longer hose is not a better hose. Excess length means more friction loss, more weight for the team dragging it, more to flake out under pressure, and more to snag in a confined machinery space. A 30-metre hose on a main deck is not generous provision; it is a deficiency. This runs against the instinct that more reach is always safer, which is exactly why it gets missed when hoses are replaced from general stores rather than to specification.
Material and readiness: Hoses of non-perishable material approved by the Administration, each with its nozzle and necessary couplings, kept ready for use in conspicuous positions near the hydrants.
Interchangeability: Unless one hose and nozzle is provided for every hydrant on the ship, there must be complete interchangeability of hose couplings and nozzles.
Number: On cargo ships of 1,000 gross tonnage and above, one hose for each 30 metres of ship length plus one spare, with a minimum of five, and additional hoses where dangerous goods are carried.
Nozzle sizes: Standard sizes of 12, 16 and 19 mm or as near as possible. Above 12 mm is unnecessary for accommodation and service spaces; for machinery spaces and exterior locations the size gives maximum discharge from two jets at the required pressure from the smallest pump, and need not exceed 19 mm.
Nozzle type: Approved dual-purpose spray and jet type, incorporating a shutoff.
The interchangeability provision is quietly important on ships that have accumulated equipment over decades. Where couplings from different standards have found their way aboard, a hose from one station may not connect to a hydrant at another, and the ship no longer has the arrangement the regulation assumes. That is a difficult problem to see during a walk-round and an easy one for an inspector to expose by asking a crew member to connect a hose at a station other than the one it belongs to.
Why the Nozzle Must Do Two Things
The dual-purpose requirement is worth understanding rather than memorising. A straight jet carries reach and penetration, which is what puts water onto a seat of fire from a safe distance. A spray pattern provides cooling and a protective water curtain, which is what allows a team to advance behind it and what protects them from radiated heat. A firefighter needs to switch between the two without leaving the space or changing equipment, and needs a shutoff so the hose can be moved without flooding the compartment.
A nozzle that has seized in one position, or that has lost its shutoff, technically still delivers water and practically removes the team’s ability to work. It is a good example of the general pattern in firefighting equipment inspection: the item functions, and has still failed at the thing it exists to do.
The Fitting Nobody Uses and Everybody Must Have
Ships of 500 gross tonnage and upwards must be provided with at least one international shore connection complying with the Fire Safety Systems Code. It is a standardised flange that lets a shore fire brigade couple its own supply into the ship’s fire main while the vessel is alongside.
Its logic is elegant. Ships and shore services around the world use incompatible couplings, so in a serious fire in port the most valuable resource available, the shore water supply, could not otherwise be connected. A single standardised flange, identical worldwide, solves that. The catch is that the connection may sit unused for the entire life of a ship, which is precisely why it goes missing, gets painted into a locker, or ends up stowed somewhere nobody can name.
The international shore connection is the one fitting aboard that exists solely for the day someone else fights your fire. It is used almost never, and asked about almost always.
Because it is easy to check and hard to explain away, it is a standing favourite in inspections. The expectation is that it is stored so as to be readily accessible, with a notice indicating its location and the maximum working pressure of the piping system, along with the bolts, nuts, washers and gasket needed to make it up. A connection that is present but incomplete, or present but buried, does not satisfy the requirement.
What Gets Checked, and How Often
The maintenance regime for this equipment sits in MSC.1/Circ.1432, and the fire main items appear on a monthly cycle rather than an annual one, which reflects how exposed they are.
The recurring findings are unglamorous and consistent: hoses perished or wrongly sized for their location, couplings that do not interchange, nozzles seized or missing their shutoff, hydrant valves painted solid, and a shore connection that nobody aboard can immediately produce. None of these is expensive to put right. All of them are visible in minutes to someone who knows to look.
What makes the fire main worth attention is that it is the system a crew will actually use. Fixed installations are released once, in extremity. Hoses and hydrants are what people fight a fire with, hands on, for as long as it takes. Equipment in that category deserves to be correct rather than merely present.
Frequently Asked Questions
Can a fire hose be too long?
Yes. SOLAS sets maximum lengths as well as a 10 metre minimum: not more than 15 metres in machinery spaces, 20 metres in other spaces and on open decks, and 25 metres for open decks on ships with a maximum breadth exceeding 30 metres. Excess length adds friction loss, weight and snagging risk, so an over-long hose is a deficiency rather than generous provision.
What is the international shore connection for?
It is a standardised flange, required on ships of 500 gross tonnage and upwards and complying with the Fire Safety Systems Code, that allows a shore fire brigade to connect its own water supply into the ship’s fire main while alongside. Because ship and shore couplings differ worldwide, this single common fitting is what makes shore assistance possible. It must be readily accessible and complete with its bolts, nuts, washers and gasket.
Why must nozzles be dual-purpose?
Because a firefighting team needs both patterns. A straight jet gives reach and penetration onto the seat of the fire; a spray gives cooling and a protective curtain to advance behind. SOLAS requires an approved dual-purpose spray and jet type nozzle incorporating a shutoff, so the operator can switch between them and stop the flow without leaving the space.
Do all hoses and nozzles need to be interchangeable?
Unless one hose and nozzle is provided for every hydrant on the ship, there must be complete interchangeability of hose couplings and nozzles. On older vessels that have accumulated equipment to different standards, this is easy to lose and hard to spot, and an inspector can expose it simply by asking a crew member to connect a hose at a station other than its own.
Sources: IMO SOLAS Chapter II-2, Regulation 10, Fire fighting, paragraph 2, Water supply systems (fire mains, hydrants, hose numbers and lengths, nozzle sizes and type, and the international shore connection for ships of 500 gross tonnage and upwards) · IMO International Code for Fire Safety Systems (FSS Code), international shore connection specification · IMO MSC.1/Circ.1432, Revised guidelines for the maintenance and inspection of fire protection systems and appliances, as amended by MSC.1/Circ.1516 (monthly checks of fire mains, pumps, hydrants, hoses and nozzles) · IMO SOLAS Chapter II-2, Regulation 14, Operational readiness and maintenance
