A specification written in Rotterdam and applied in Johor is not the same specification. The standards themselves say so, in a category most buyers have never read, and the gap shows up as early failure on assets that were painted exactly as drawn.
The Category Most Specifications Get Wrong
ISO 12944-2 classifies the environments steel structures are exposed to and the corrosivity of those environments, defining atmospheric corrosivity categories based on mass loss or thickness loss by standard specimens. The current edition is the second, published in November 2017, and that revision changed the labels in a way that still causes confusion nine years on.
The old C5I and C5M categories were replaced. C5, rated very high, now covers industrial areas with high humidity and aggressive atmospheres and coastal areas with high salinity. The former C5M became CX, rated extreme, and its typical exterior environments are offshore areas with high salinity and extreme humidity together with aggressive industrial atmospheres, explicitly including tropical conditions.
Read that last clause carefully, because it is the whole argument. The standard does not treat tropical exposure as a harsher variant of coastal temperate exposure. It puts it in the top category, alongside offshore. The same revision added a very high durability range of 25 years or more, introduced largely to serve marine environments, and the offshore systems and test methods sit in Part 9, which incorporated a revision of the former ISO 20340.
A system specified to C5 and applied on the Johor Strait is being asked to perform a category above the one it was qualified for. Nothing in the application went wrong.
One caution on the standard itself. ISO 12944-2:2017 remains current and was confirmed on review, but it now carries the status of a standard to be revised, with a working draft of the next edition in development. Anyone writing a long-life specification should expect the classification to move again.
Why the Tropical Case Is Different in Kind
The reason a tropical marine environment earns its own tier is not that it is hotter. Several mechanisms stack, and they stack in a way temperate climates do not reproduce.
Time of wetness. Corrosion proceeds while an electrolyte film is present. High ambient humidity with little diurnal relief keeps surfaces wet for a far greater fraction of the year than a temperate coastal site, where surfaces dry.
Temperature on the reaction rate. Electrochemical corrosion accelerates with temperature. A steel surface in direct sun at low latitude runs well above air temperature for most of the day.
Chloride with humidity. Airborne salt is hygroscopic. Deposited salt holds moisture at humidities that would otherwise leave the surface dry, which is why coastal and offshore exposure is worse than either factor alone.
Ultraviolet load. Year-round high UV degrades topcoats faster, and a degraded topcoat stops protecting the layers beneath it before it looks obviously failed.
Thermal cycling with rain. A hot surface quenched by afternoon rain imposes a cycle on the film that no laboratory ageing test in a temperate specification was written to represent.
The consequence is that a system’s qualification history matters as much as its generic type. Two products described identically on a data sheet may have been tested to different categories, and the category is the question to ask.
Dew Point Is the Constraint Nobody Budgets For
The second failure mode has nothing to do with product selection. It is that the hours available for application are fewer than the programme assumes, and the reason is condensation.
ISO 8502-4 gives guidance on estimating the probability of condensation on a surface to be painted and may be used to establish whether conditions at the job site are suitable for painting. Its current edition is the second, published on 10 January 2017, which replaced the 1993 edition withdrawn on the same date. The method is straightforward: measure air temperature and relative humidity, derive the dew point, measure the steel surface temperature, and compare the two.
What makes that method bite in Malaysia is the humidity. At high relative humidity the dew point sits close to the air temperature, which means the steel has very little margin before condensation forms on it. A specification is normally written to require the substrate to sit some margin above dew point before coating, and that margin commonly appears as a figure in the coating manufacturer’s product data sheet rather than in the condensation standard, which gives guidance on estimating probability rather than an acceptance threshold. The number in the project specification therefore comes from the product, and it should be read from the actual data sheet rather than recalled.
The dew point does not stop work at the end of the day. It stops work in the morning, again after rain, and again whenever a steel surface cools faster than the air.
In practice that produces a working day with holes in it. Early morning steel is often below dew point. Afternoon rain resets the surface and the drying time follows. Overnight condensation can mean a surface prepared yesterday is no longer in the condition it was accepted in. None of this is a contractor performance problem, and treating it as one guarantees either a schedule overrun or a coating applied outside its conditions.
What a Tropical Specification Has to Do Differently
Writing for the climate rather than against it changes a handful of decisions, and none of them are exotic.
The dehumidification item is the one that changes outcomes most and is cut from scope most often. Enclosing and conditioning a work area is expensive, visible and easy to challenge at tender. Its value is that it removes the variable responsible for most rework, and the comparison that matters is against the cost of an early recoat rather than against a dry specification.
The fourth item catches experienced people. Overcoating intervals are stated for a reference temperature, and a surface running well above that reference moves through the window faster. A coat left for a weekend in tropical sun can exceed its maximum interval, at which point adhesion of the next coat depends on preparation that was never planned.

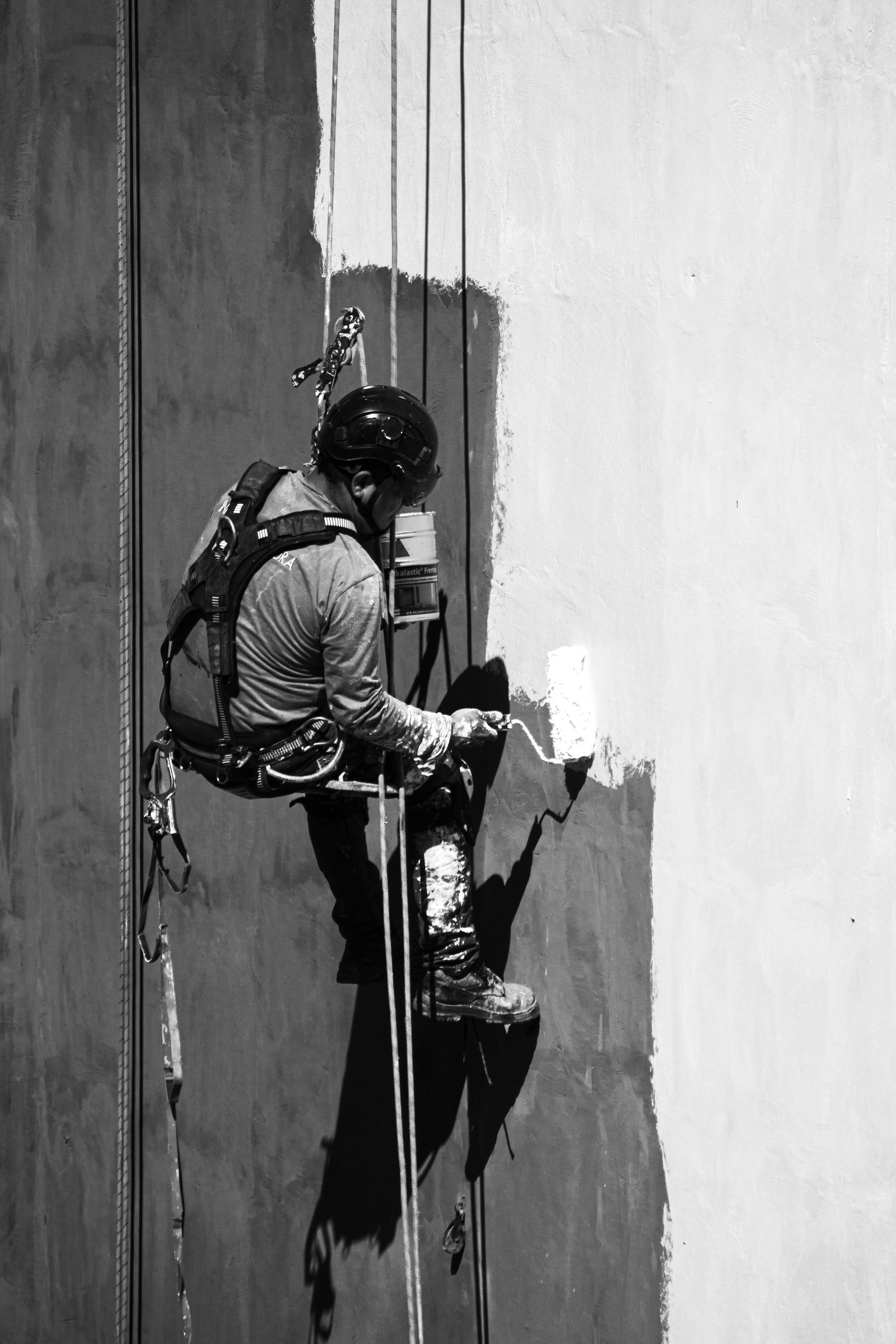

None of this argues that tropical coating work is harder to get right. It argues that it is a different problem with its own category in the standards, and that importing a specification written for a different category is the most common root cause of a system that fails years early. Our industrial painting and coating work is specified and executed for these conditions, including the environmental control and monitoring that the conditions require rather than the ones a temperate document assumes.
Frequently Asked Questions
Which corrosivity category applies to a Malaysian coastal or offshore asset?
Potentially CX, the extreme category introduced in ISO 12944-2:2017, whose typical exterior environments are offshore areas with high salinity and extreme humidity and aggressive industrial atmospheres, explicitly including tropical conditions. C5, rated very high, covers coastal areas with high salinity and humid aggressive industrial areas. The category must be established for the actual site and exposure, since it determines what the system has to be qualified for.
What happened to C5-M?
The 2017 second edition of ISO 12944-2 replaced the former C5I and C5M labels. C5I became C5 and C5M became CX. The same revision added a very high durability range of 25 years or more, introduced largely for marine environments, with offshore systems and laboratory test methods in Part 9, which incorporated a revision of the former ISO 20340. A specification still citing C5-M is working from superseded labels.
How is dew point handled during application?
ISO 8502-4, now in its second edition published in January 2017, gives guidance on estimating the probability of condensation and can be used to establish whether site conditions are suitable for painting. The method compares the dew point, derived from air temperature and relative humidity, with the measured steel surface temperature. The margin required between the two is normally taken from the coating manufacturer’s product data sheet, so read it from the data sheet for the system being applied.
Is dehumidification worth the cost on a tropical project?
Frequently yes, where the asset value or the access cost is significant. Enclosure and dehumidification remove the weather dependence that drives both schedule slip and application outside specified conditions, which is the dominant cause of rework. The useful comparison is against the cost of an early recoat and the access needed for it, not against a specification that assumes uninterrupted dry working.
Sources: ISO 12944-2:2017, Paints and varnishes, Corrosion protection of steel structures by protective paint systems, Part 2, Classification of environments, second edition published November 2017, defining atmospheric corrosivity categories based on mass loss or thickness loss by standard specimens and covering immersed and buried environments and special corrosion stresses, currently confirmed as remaining valid while carrying the status of a standard to be revised with a working draft in development · British Coatings Federation information note on ISO 12944, recording that the 2017 revision replaced C5I with C5 and C5M with CX, that C5 is rated very high with typical exteriors of industrial areas with high humidity and aggressive atmospheres and coastal areas with high salinity, that CX is rated extreme with typical exteriors of offshore areas with high salinity and extreme humidity and aggressive industrial atmospheres including tropical conditions, that a very high durability range of 25 years or more was introduced mainly for marine environments, and that Part 9 covers protective paint systems and laboratory performance test methods for offshore and related structures incorporating a revision of ISO 20340:2009 · ISO 8502-4:2017, Preparation of steel substrates before application of paints and related products, Tests for the assessment of surface cleanliness, Part 4, Guidance on the estimation of the probability of condensation prior to paint application, second edition published 10 January 2017, replacing ISO 8502-4:1993 withdrawn on the same date, the earlier edition describing measurement of air temperature and relative humidity, calculation of dew point, measurement of steel surface temperature and estimation of the minimum surface temperature above dew point, with a dew point table at Annex A · ISO 12944-7, Execution and supervision of paint work, for application conditions and supervision
