Decoding Ship Design: Concept to Construction

MarineCraft Journal | Naval Architecture

Every vessel begins as a set of operational requirements and ends as a physical structure built to exact tolerances, but the journey between those two points involves four distinct design stages, each with its own scope, disciplines, and decision points. Understanding how ship design progresses from concept to production helps every maritime professional appreciate the rigour behind the vessels they operate, survey, or manage.

By MarineCraft Journal · May 2026 · 7 min read

4Distinct Stages from Concept to Production

FEMFinite Element Analysis Used in Detailed Design

ClassSociety Validation Required at Basic Design Stage

BespokeEvery Ship Designed for a Specific Mission

Key Facts — The Ship Design Process at a Glance

Stage 1 — Concept design: Defines operational requirements, preliminary hull form, stability criteria, propulsion, and essential equipment. Subjected to techno-economic evaluation for safety, performance, and cost feasibility.

Stage 2 — Basic design: Solidifies all major design aspects, including hull form, dimensions, structure, systems, and safety features. Most decisions become largely irreversible at this stage. Classification society validation required for most deliverables.

Stage 3 — Detailed design: Refines every element with precise specifications including welds, material grades, and dimensional tolerances. Finite Element Analysis used for structural assessment. 3D models produced for structure, hydrodynamics, and systems.

Stage 4 — Production design: Conducted at the shipyard. Generates working-level drawings with cutting, welding, and installation instructions, alongside construction schedules and work instructions for yard personnel.

Key professionals: Naval architects lead throughout; supported by mechanical, electrical, structural, and materials engineers across stages two and three.

Contract design: Basic and detailed design are often combined into a single contract design phase representing the owner’s formal commitment to the finalised vessel design.

Why Ship Design Is Unlike Any Other Engineering Process

Ship design isn’t engineering at scale applied to a standard template. Every commercial vessel is a bespoke creation, tailored to a specific operational mission and optimised for its intended trade route, cargo type, port constraints, and regulatory environment. A bulk carrier designed for the Pacific ore trade differs from one built for coastal aggregate work in ways that extend from hull form and structural scantlings to electrical distribution and safety equipment arrangements. The design process that produces each vessel must therefore begin from first principles, translating a set of owner requirements into a technically rigorous, economically viable, and regulatory-compliant design that can be built within budget and delivered on schedule.

That process unfolds across four sequential stages, each building on and refining the output of the last. Decisions made early are progressively locked in as the design advances. The freedom to reconfigure hull form or fundamentally alter stability characteristics that exists in concept design is gone by the time basic design is complete. Understanding where each decision is made, and what it forecloses, is essential context for anyone involved in vessel procurement, project management, or classification.

Decisions are cheapest when made early and most expensive when made late. By the time basic design is complete, major aspects of the vessel are largely irreversible. The rigour invested in concept and basic design determines the quality and cost of everything that follows.

The Four Stages of Ship Design

Concept Design — Defining the Mission

The concept design stage translates the owner’s operational requirements into a preliminary technical definition of the vessel. Cargo capacity, required speed, endurance range, and intended trade routes are defined at this stage, from which a preliminary design emerges covering hull form, cargo stowage, stability criteria, propulsion configuration, and essential equipment. This preliminary design is subjected to a techno-economic evaluation assessing both technical feasibility, including buoyancy, stability, structural strength, manoeuvrability, and environmental compliance, and economic viability against the owner’s budget. Where costs exceed limits or performance falls short, the design is refined and re-evaluated iteratively. Naval architects lead this optimisation, drawing heavily on computational modelling to evaluate design metrics efficiently across multiple iterations.

Basic Design — Setting the Course

Once concept design is approved, the process advances to basic design, the stage at which major aspects of the vessel become largely irreversible. Hull form, key dimensions, weights, stability parameters, tankage arrangements, structural philosophy, space arrangements, hydrodynamic performance, propulsion systems, electrical distribution, and safety features are all solidified. Deliverables include virtual models, material listings, general arrangement drawings, major structural drawings, global load and strength calculations, and stability and seakeeping analyses. All major deliverables require classification society validation. Naval architects remain central, but the stage requires parallel input from mechanical, electrical, structural, and materials engineers.

Detailed Design — Fine-Tuning the Machine

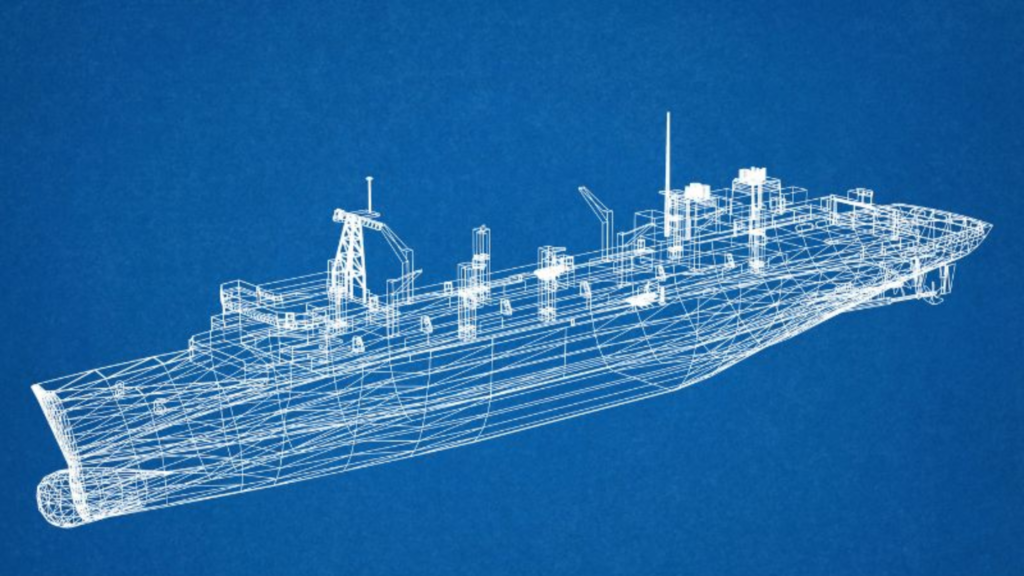

Detailed design refines every element from basic design to the precision required for construction. Structural drawings are updated to include precise specifications for every element, including weld types, material grades, dimensional tolerances, and surface treatment requirements. Finite Element Analysis assesses load behaviour under all anticipated conditions, with iterative design revisions until satisfactory strength performance is demonstrated across the full load case matrix. Machinery, electrical systems, piping, HVAC, cargo handling, and outfitting items are all finalised. Comprehensive 3D models provide the digital foundation for production planning and future modifications. Basic and detailed design are frequently combined into a single contract design phase representing the owner’s formal commitment to the vessel as designed.

Production Design — Blueprint to Reality

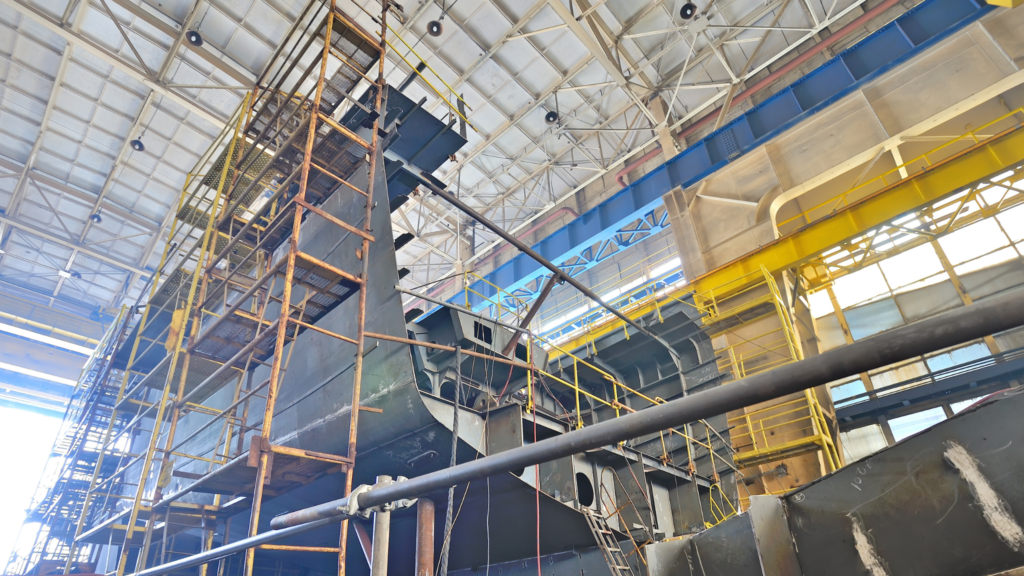

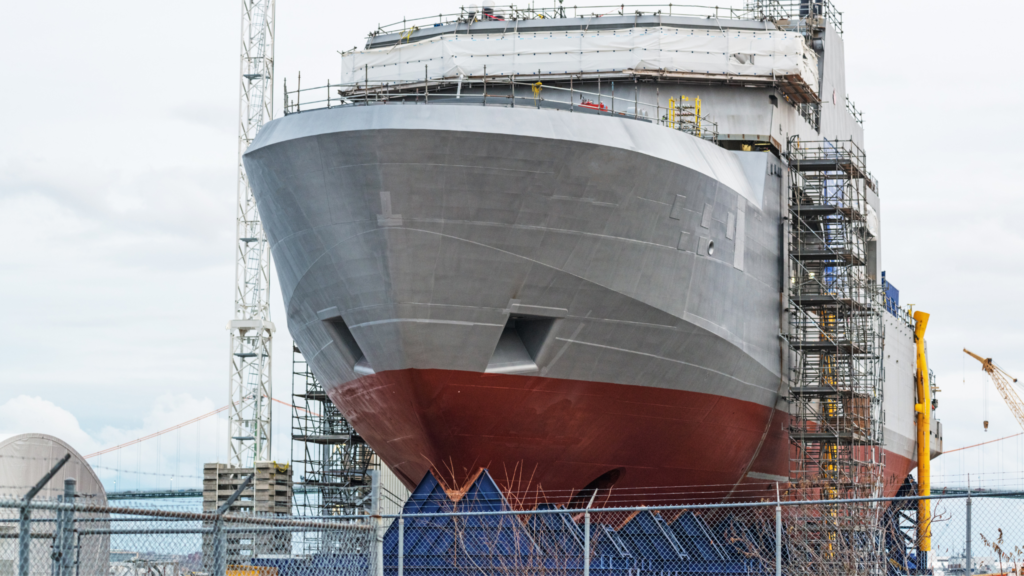

Production design is conducted within the shipyard and focuses entirely on planning and executing the physical construction and fabrication process. It translates detailed design deliverables into working-level production drawings with explicit instructions for cutting, welding, section erection, and equipment installation. Construction schedules are developed for all yard activities and clear work instructions produced for the yard workforce, ensuring the vessel is built in the correct sequence, to the correct tolerances, and within the established timeline. Production design is where the accumulated precision of the preceding three stages is finally translated into the physical structure that will enter service.

Key Disciplines and Deliverables Across the Stages

Naval Architecture

Leads the design process across all four stages. Responsible for hull form, hydrostatics, stability, seakeeping, resistance, and propulsion performance, the core technical integrity of the vessel.

Structural Engineering

Defines scantlings, connection details, and material specifications. Employs Finite Element Analysis in detailed design to verify structural behaviour under global and local load conditions.

Mechanical Engineering

Covers propulsion machinery, auxiliary systems, piping, and HVAC. Integrates with hull and structural design to ensure spatial compatibility and system performance across all operating conditions.

Electrical Engineering

Designs power generation, distribution, and control systems. Electrical architecture is established at basic design and refined through detailed design to support all shipboard load demands.

Classification Society

Validates major deliverables throughout basic and detailed design against class rules and statutory requirements. Approval is a prerequisite for proceeding to production for most design elements.

Production design is where the accumulated precision of concept, basic, and detailed design is finally translated into physical reality. The quality of the vessel that enters service is a direct reflection of the rigour invested at every preceding stage, and the decisions that would have been inexpensive to change in concept design become structurally embedded in steel by the time the keel is laid.

Frequently Asked Questions

At what stage does a ship design become largely irreversible?

Basic design is the stage at which most major aspects of the vessel, including hull form, key dimensions, structural philosophy, propulsion configuration, and space arrangements, become largely irreversible. Concept design offers the greatest freedom to reconfigure; by the time basic design is approved and validated by the classification society, fundamental changes become extremely costly and disruptive.

What is the difference between basic design and contract design?

Contract design is an industry term that typically refers to the combination of basic and detailed design into a single phase representing the shipowner’s formal contractual commitment to the finalised vessel. The designation reflects the commercial milestone rather than a distinct technical stage. It signals that the design has been sufficiently developed and approved to form the basis of a construction contract between owner and shipyard.

Why is Finite Element Analysis used in detailed design rather than earlier stages?

FEM requires a sufficiently detailed definition of structural geometry, member sizes, material properties, and load conditions to produce meaningful results. In concept and early basic design, these parameters aren’t yet fixed to the level of precision that FEM demands. Detailed design provides the structural definition necessary to build and analyse a credible FEM model, one whose results can be used to verify compliance with class rules and refine scantlings with confidence.

Who carries out production design — the design office or the shipyard?

Production design is carried out within the shipyard, typically by the yard’s own design and planning departments. It requires detailed knowledge of the yard’s specific fabrication methods, tooling, berth capacity, and workforce skills, knowledge that resides in the shipyard rather than in external design offices. The shipyard translates the detailed design deliverables into yard-specific production drawings, work instructions, and construction schedules tailored to its own processes.
